K A N T I T E X T I L E

Silent Feature

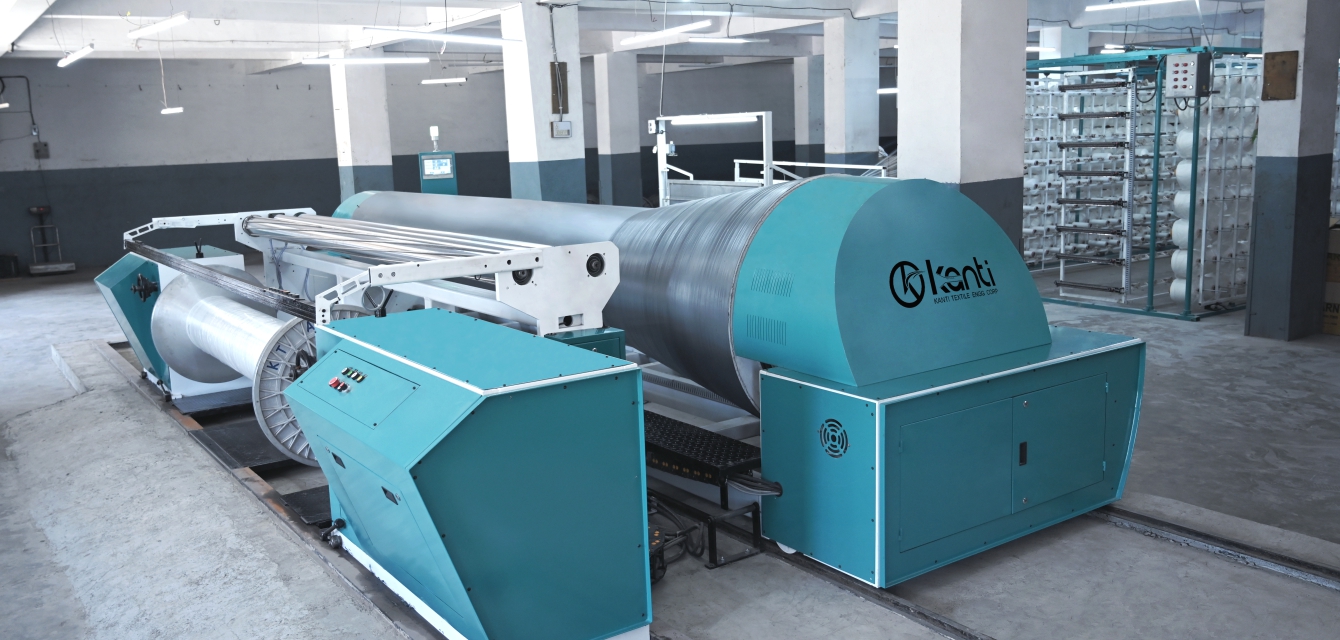

Extremely robust separate warping and beaming structure

- Warp table movement by AC servo motor and drives

- Auto-measurement for precise work in the next section

- Auto beaming tension

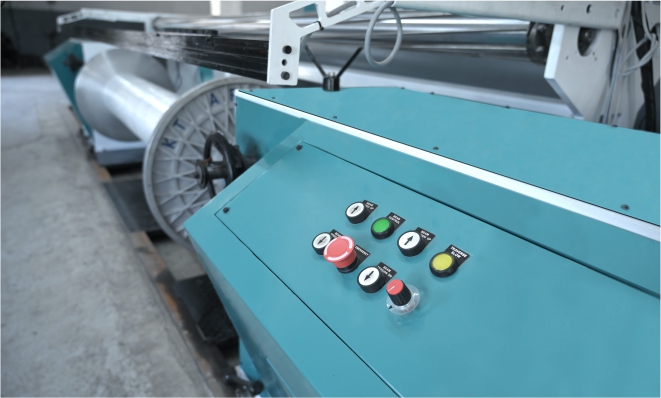

- Intelligent operational Panel having large colour touch screen display

- Extra heavy drum 12mm

- Very effective hydraulic disc brakes with Air cooling on both sides

- Innovative cradle type beaming

- Oscillating leasing stand

- Accurate length measuring with lost end memory

- Reverse / forward drum rotation

Technical Specification

  • Working width : 1800 - 4200 mm
  • Drum Circumference : 2500mm
  • Beaming tension : up to 600 Kg
  • Beam flange Diameter : 800/1000mm
  • Warping speed : up to 600 Mtr/min
  • Cone angle : 7° / 8.5° / 10.5°
  • Beaming speed : up to 100 Mtr/min
